HARD GRADE / MEDIUM GRADE

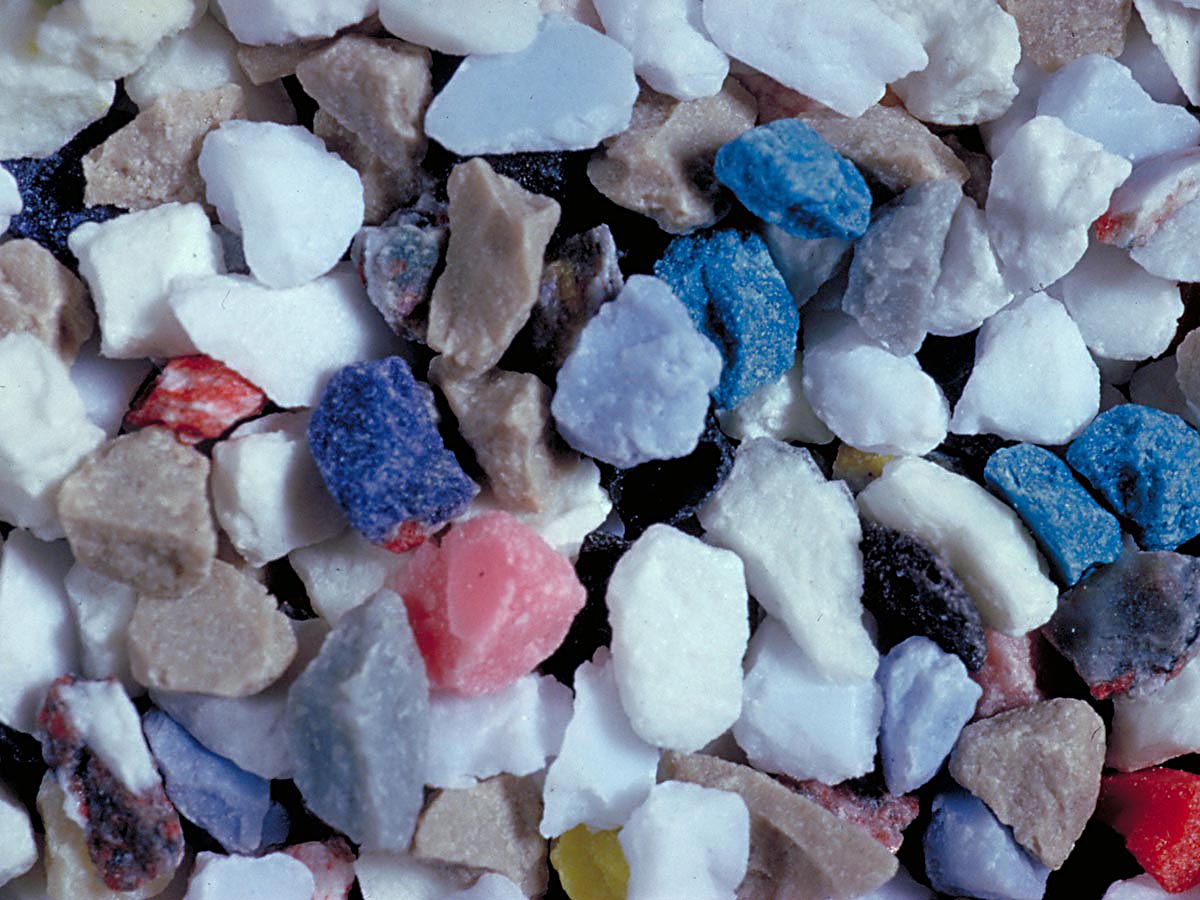

GRANULATED PLASTIC MEDIA
Type: Granulated Plastic | Shape: Irregular | Mohs: 4.0/3.5
» Media available in hard or medium grade
» Cleaning of electronic components in deflashing equipment
» Light metal deburring
For Wet – Blast Deflashing of Integrated Circuits and Discrete Electronic Components
SPECIFICATIONS
| Part No. | Sieve Size | Inches | Millimeters |
| WBM – 2 | 20/30 | .033 – .023 | .84 – .58 |
| WBM – 3 | 30/40 | .023 – .017 | .58 – .42 |
| WBM – 4 | 40/60 | .017 – .010 | .42 – .25 |
| WBM – 5 | 60/100 | .010 – .006 | .25 – .15 |
FOR REFERENCE:
• SPECIFIC GRAVITY = 1.5 gms/cc (Glass Bead = 2.5)
• HARDNESS = 4.0/3.5 MOHS (Glass Bead = 5.5)
• NOTE: Custom sizing and special screening are available. Please inquire.
FEATURES AND BENEFITS
- WBM is harder and denser than other plastic media resulting in more efficient deflashing, superior sedimentation and excellent media circulation.
- WBM is softer and less abrasive than glass bead and, therefore, doesn't damage parts and causes no excessive wear to deflashing machinery.
- WBM is offered in a wide range of standard sizes so that the ideal size is available for each individual application.
- WBM features tight size control which excludes ineffective, dusty fines and oversized particles from media mix.
