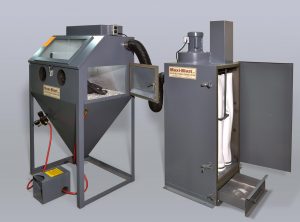

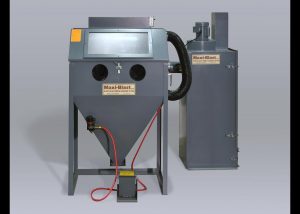

To ensure maximum operator visibility, dust is vacuumed from the cabinet by means of a high efficiency blower located on the clean air side of the dust collector. For easy maintenance, the dust collector is equipped with a manual bag shaker.
The cabinet and the dust collector are constructed of heavy-duty 14-gauge steel, all welded construction.

Features System Specifications

Features

  • Cyclone separator
  • Pressure regulator, gauge, moisture separator and movable foot valve
  • Large side door or clamshell entry for loading and unloading; fully gasketed with positive lever lock
  • Heavy-duty rubber blasting gloves
  • Shatter-proof window mounted in rubber-sealed frame
  • Heavy gauge formed steel legs
  • Continuous welds, no rivets or spot welding
  • Easy slide dust drawer
  • Drain plug for quick media change
  • Air blow-off gun
  • Light weight, easy to handle suction gun with ceramic or tungsten carbide blast nozzle

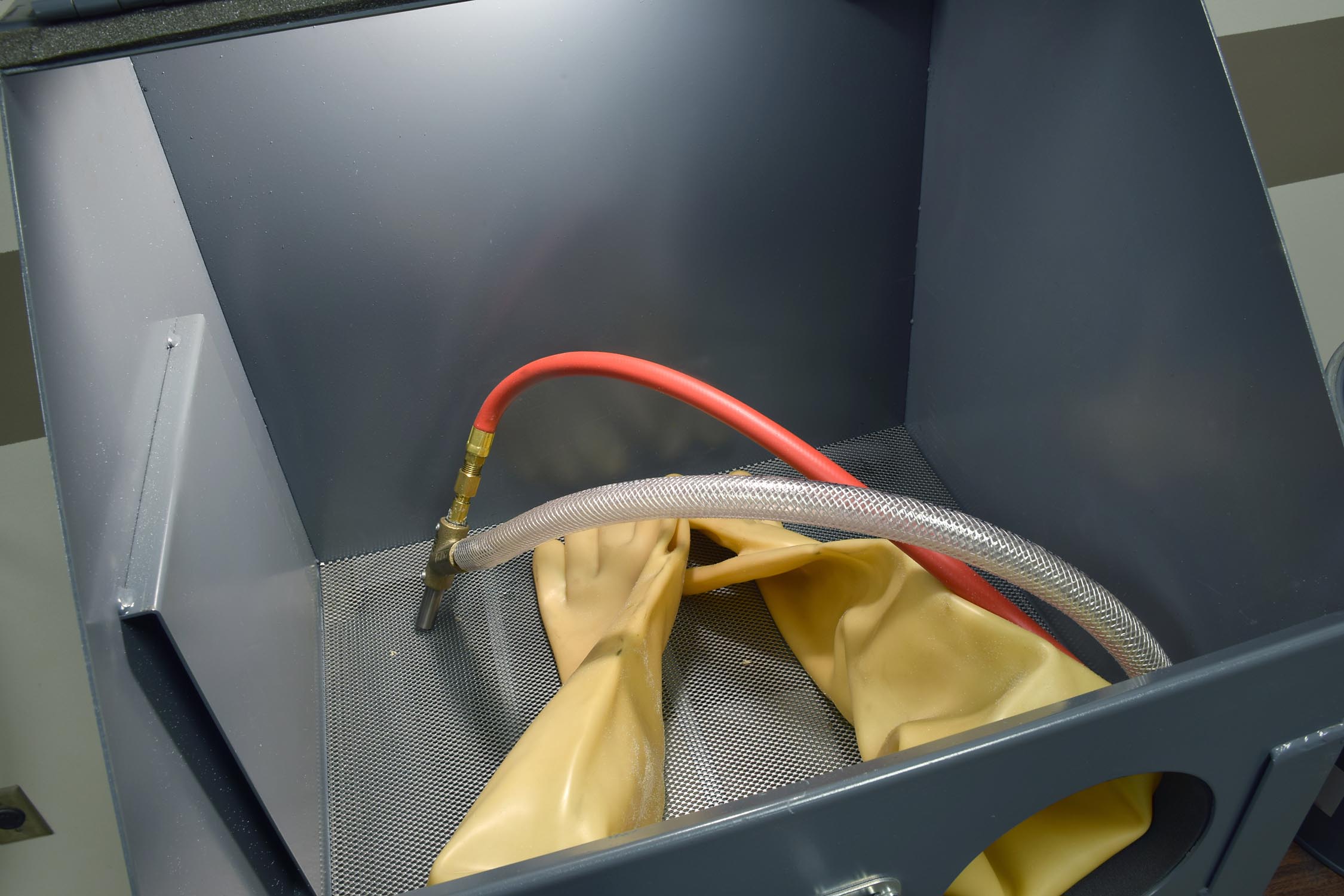

  • Expanded metal work table

Suction Blast Stripping System Specifications
Inside Cabinet
Dimensions
W x D x H		 Floor Space Cabinet
& Dust Collector
W x D x H 		Door
Opening
24" x 24” x 24” 36" x 40" x 89" 20” x 20"*
36" x 30” x 30” 40" x 50" x 89" 26" x 26"*
48" x 30” x 30” 50" x 50“ x 89” 26” x 26”+
48” x 36” x 36" 50” x 56“ x 89" 32” x 32”+
48" x 48” x 48” 50" x 72" x 89” 44" x 44"+
60" x 36" x 36" 64" x 56" x 96" 32" x 32"+
72" x 36” x 36” 80” x 95" x 98” 32” x 32”+
96" x 36” x 36” 100” x 95” x 108” 32” x 32”+

Custom Sizing Available
*Door on Right Side
+Two Doors are Standard
